Hands-on Exercise 4A: Visualizing Statistical Analysis

Author

Kristine Joy Paas

Published

May 3, 2024

Modified

May 4, 2024

1 Overview

This hands-on exercise covers Chapter 10: Visual Statistical Analysis.

I learned about the following:

  • creating visual graphics with rich statistical information

2 Getting Started

2.1 Loading the required packages

For this exercise we will use the following R packages:

  • tidyverse, a family of modern R packages specially designed to support data science, analysis and communication task including creating static statistical graphs.

  • ggstatsplot, extension of ggplot2 package for creating graphics with details from statistical tests included in the information-rich plots themselves.

  • rstantools, interfaces with Stan for statistical modeling and high-performance statistical computation

pacman::p_load(tidyverse, ggstatsplot, rstantools)
# Set seed
set.seed(1234)

2.2 Loading the data

We will use the same exam_data dataset from Hands-on Ex 1 and load it into the RStudio environment using read_csv().

exam_data <- read_csv("data/Exam_data.csv")
glimpse(exam_data)
Rows: 322
Columns: 7
$ ID      <chr> "Student321", "Student305", "Student289", "Student227", "Stude…
$ CLASS   <chr> "3I", "3I", "3H", "3F", "3I", "3I", "3I", "3I", "3I", "3H", "3…
$ GENDER  <chr> "Male", "Female", "Male", "Male", "Male", "Female", "Male", "M…
$ RACE    <chr> "Malay", "Malay", "Chinese", "Chinese", "Malay", "Malay", "Chi…
$ ENGLISH <dbl> 21, 24, 26, 27, 27, 31, 31, 31, 33, 34, 34, 36, 36, 36, 37, 38…
$ MATHS   <dbl> 9, 22, 16, 77, 11, 16, 21, 18, 19, 49, 39, 35, 23, 36, 49, 30,…
$ SCIENCE <dbl> 15, 16, 16, 31, 25, 16, 25, 27, 15, 37, 42, 22, 32, 36, 35, 45…

There are a total of seven attributes in the exam_data tibble data frame. Four of them are categorical data type and the other three are in continuous data type.

  • The categorical attributes are: ID, CLASS, GENDER and RACE.

  • The continuous attributes are: MATHS, ENGLISH and SCIENCE.

3 Statistical Functions with ggplot2

3.1 One-sample test: gghistostats() method

In the code chunk below, gghistostats() is used to to build an visual of one-sample test on English scores.

gghistostats(
  data = exam_data,
  x = ENGLISH,
  type = "bayes",
  test.value = 60,
  xlab = "English scores"
)

The default information included are: - statistical details - Bayes Factor - sample sizes - distribution summary.

3.2 Unpacking the Bayes Factor

  • A Bayes factor is the ratio of the likelihood of one particular hypothesis to the likelihood of another. It can be interpreted as a measure of the strength of evidence in favor of one theory among two competing theories.

  • That’s because the Bayes factor gives us a way to evaluate the data in favor of a null hypothesis, and to use external information to do so. It tells us what the weight of the evidence is in favor of a given hypothesis.

  • When we are comparing two hypotheses, H1 (the alternate hypothesis) and H0 (the null hypothesis), the Bayes Factor is often written as B10. It can be defined mathematically as

\[ \frac{likelihood\ of\ data\ given H_1}{likelihood\ of\ data\ given H_0} = \frac{P(D|H_1)}{P(D|H_0)} \]

  • The Schwarz criterion is one of the easiest ways to calculate rough approximation of the Bayes Factor.

3.3 How to interpret Bayes Factor

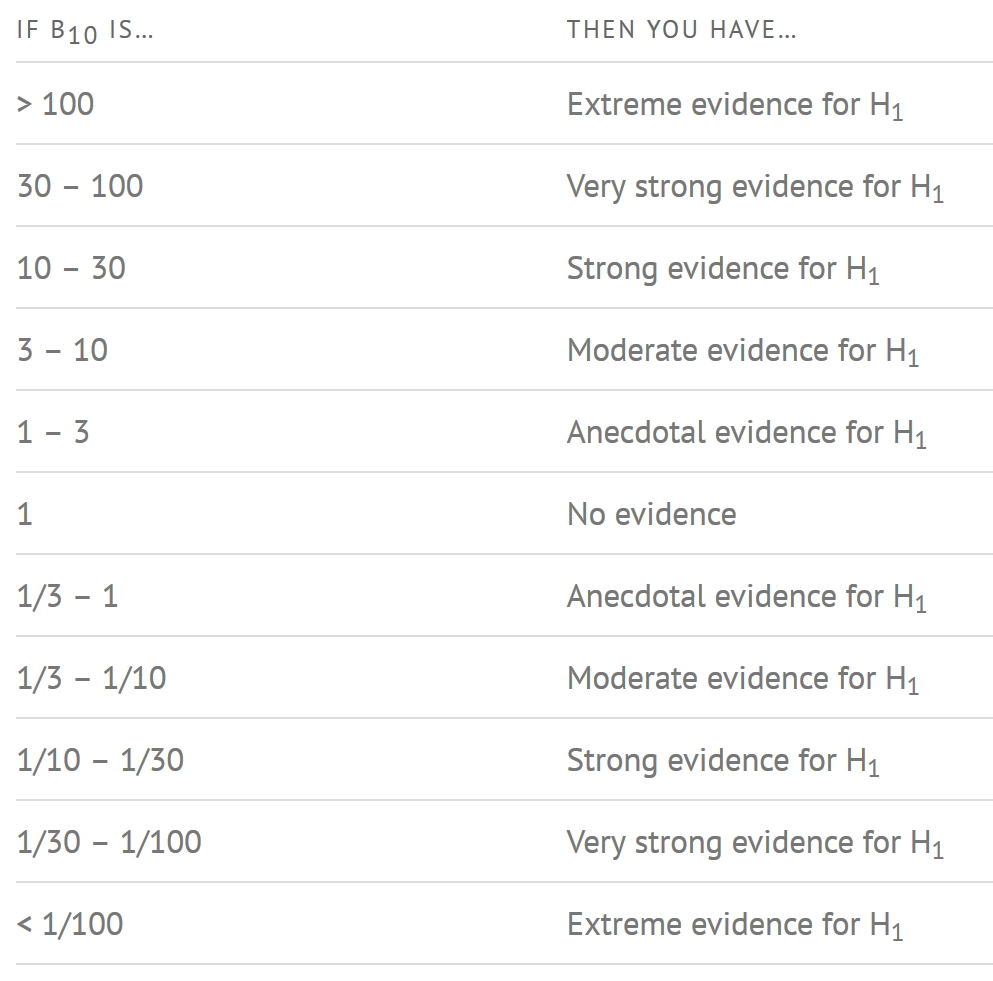

A Bayes Factor can be any positive number. One of the most common interpretations is this one—first proposed by Harold Jeffereys (1961) and slightly modified by Lee and Wagenmakers in 2013:

3.4 Two-sample mean test: ggbetweenstats()

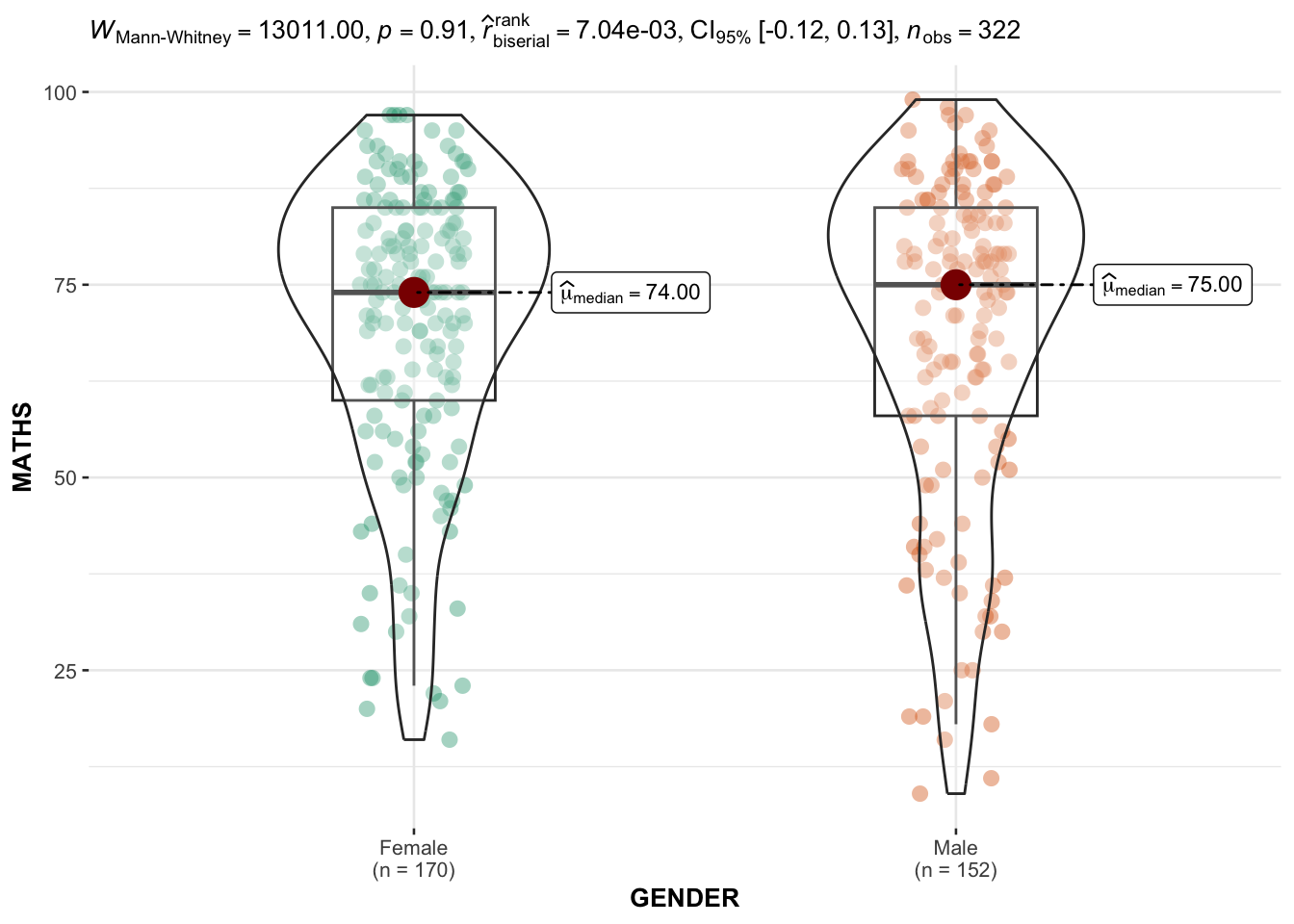

In the code chunk below, ggbetweenstats() is used to build a visual for two-sample mean test of Maths scores by gender.

ggbetweenstats(
  data = exam_data,
  x = GENDER,
  y = MATHS,
  type = "np",
  messages = FALSE
)

The default information included are: - statistical details - Bayes Factor - sample sizes - distribution summary

3.5 Oneway ANOVA Test: ggbetweenstats() method

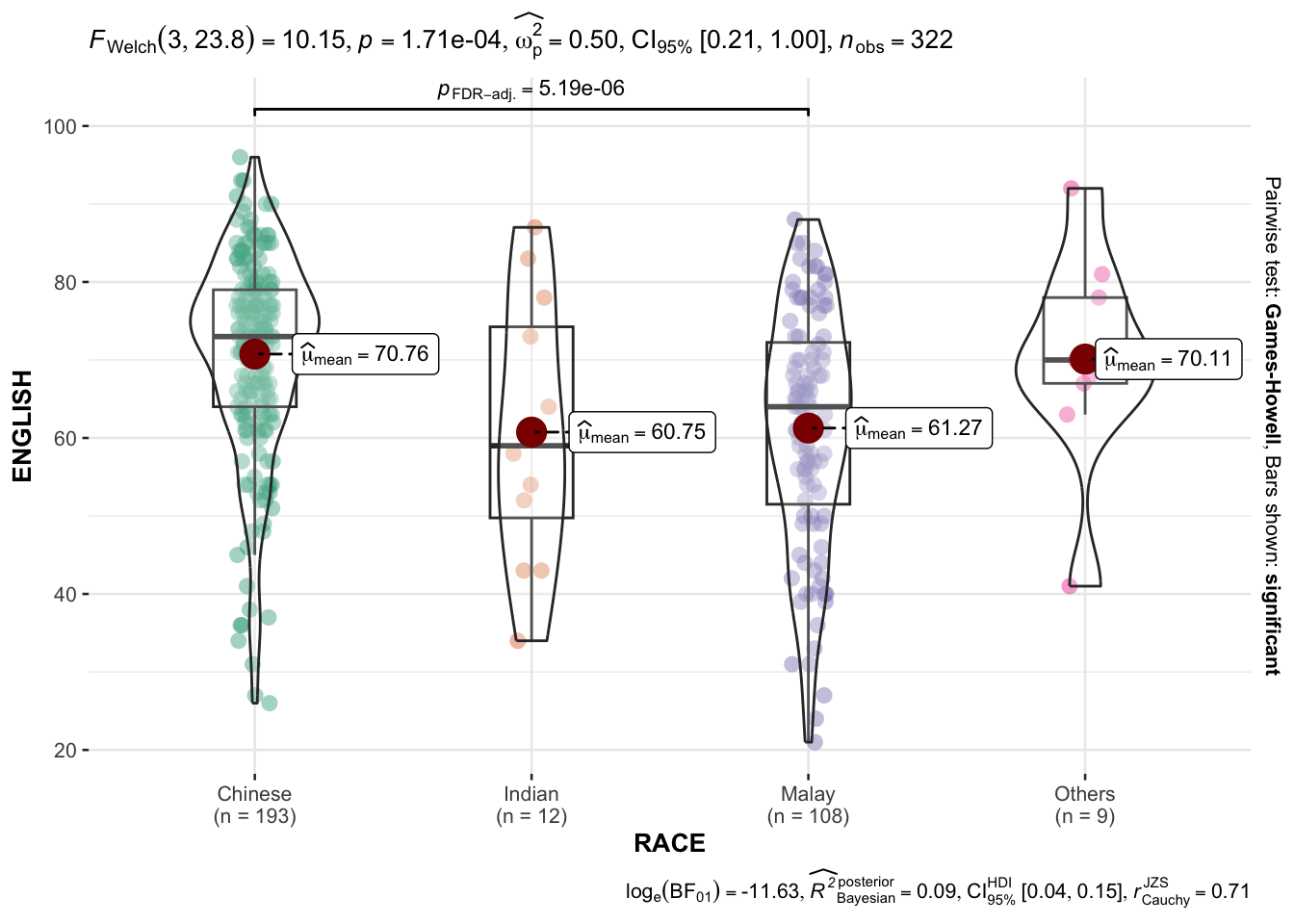

In the code chunk below, ggbetweenstats() is used to build a visual for One-way ANOVA test on English score by race.

ggbetweenstats(
  data = exam_data,
  x = RACE,
  y = ENGLISH,
  type = "p",
  mean.ci = TRUE,
  pairwise.comparisons = TRUE,
  pairwise.display = "s",
  p.adjust.method = "fdr",
  messages = FALSE
)

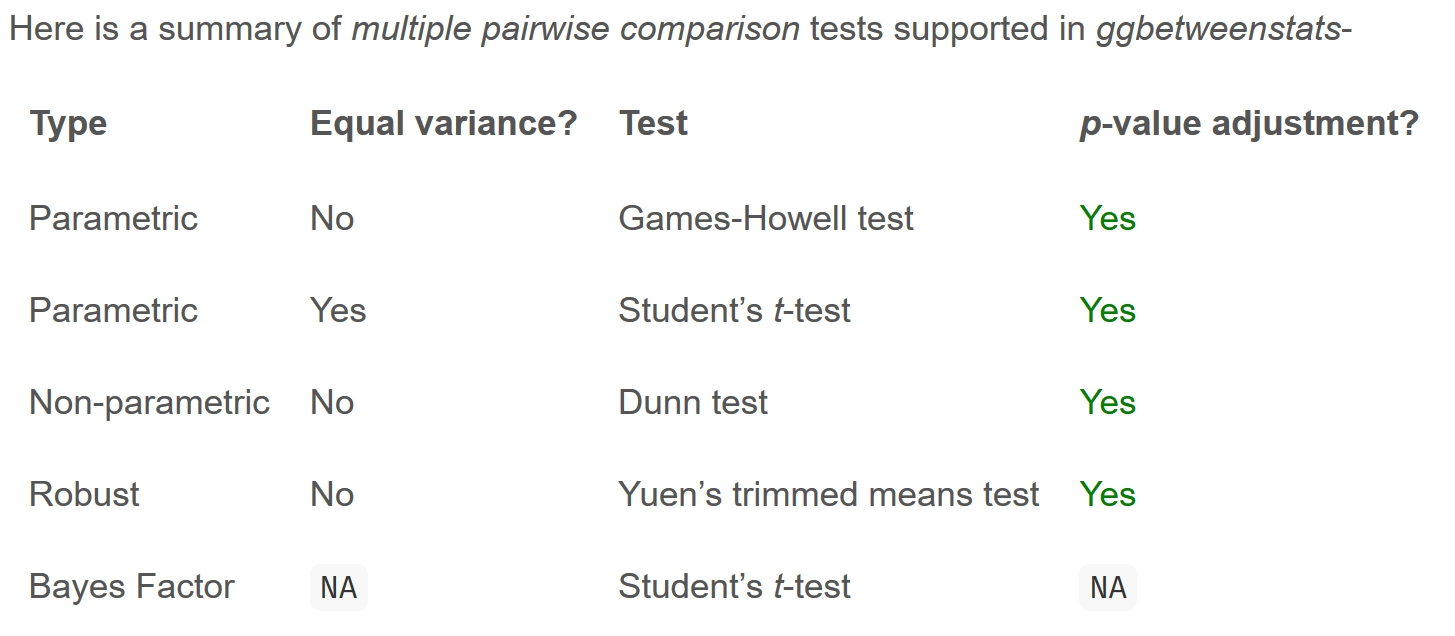

  • “ns” → only non-significant

  • “s” → only significant

  • “all” → everything

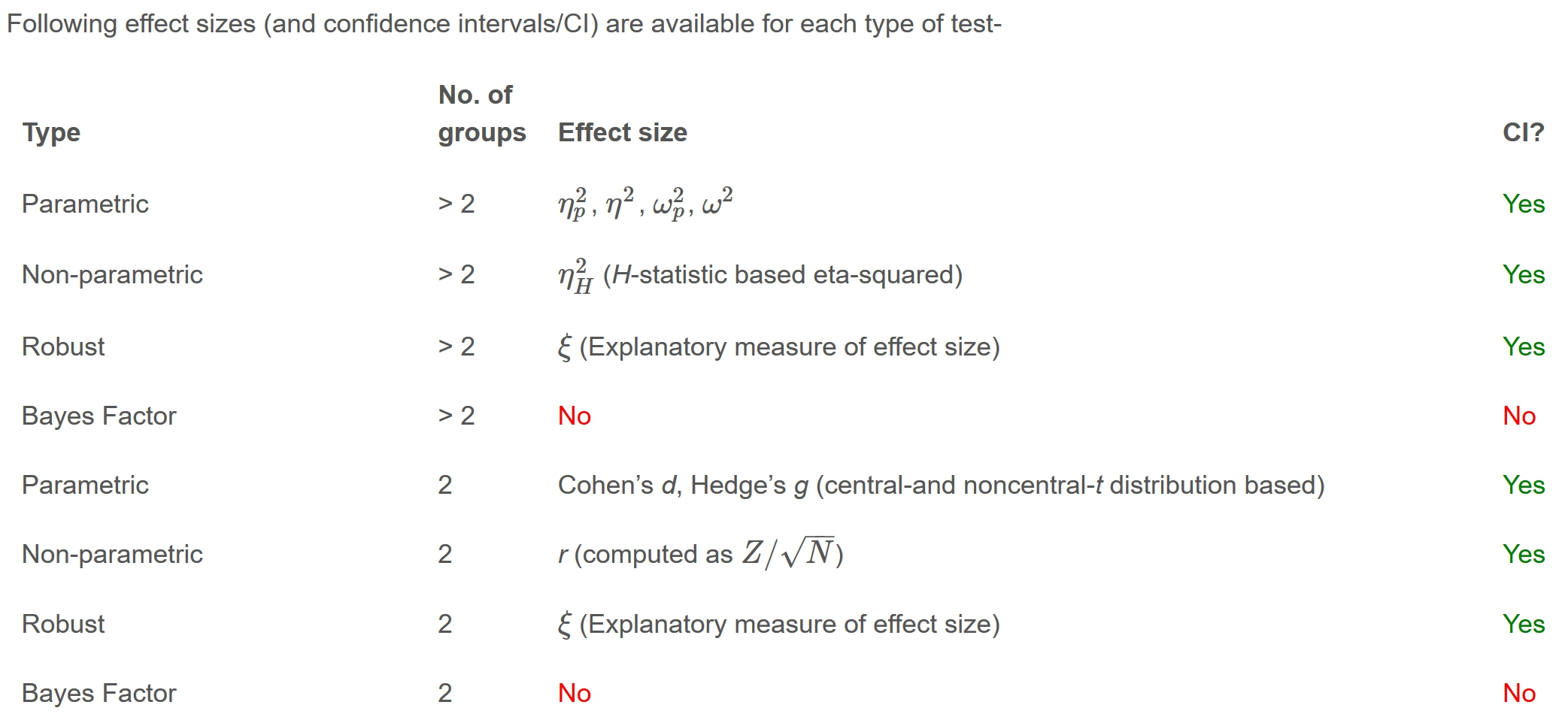

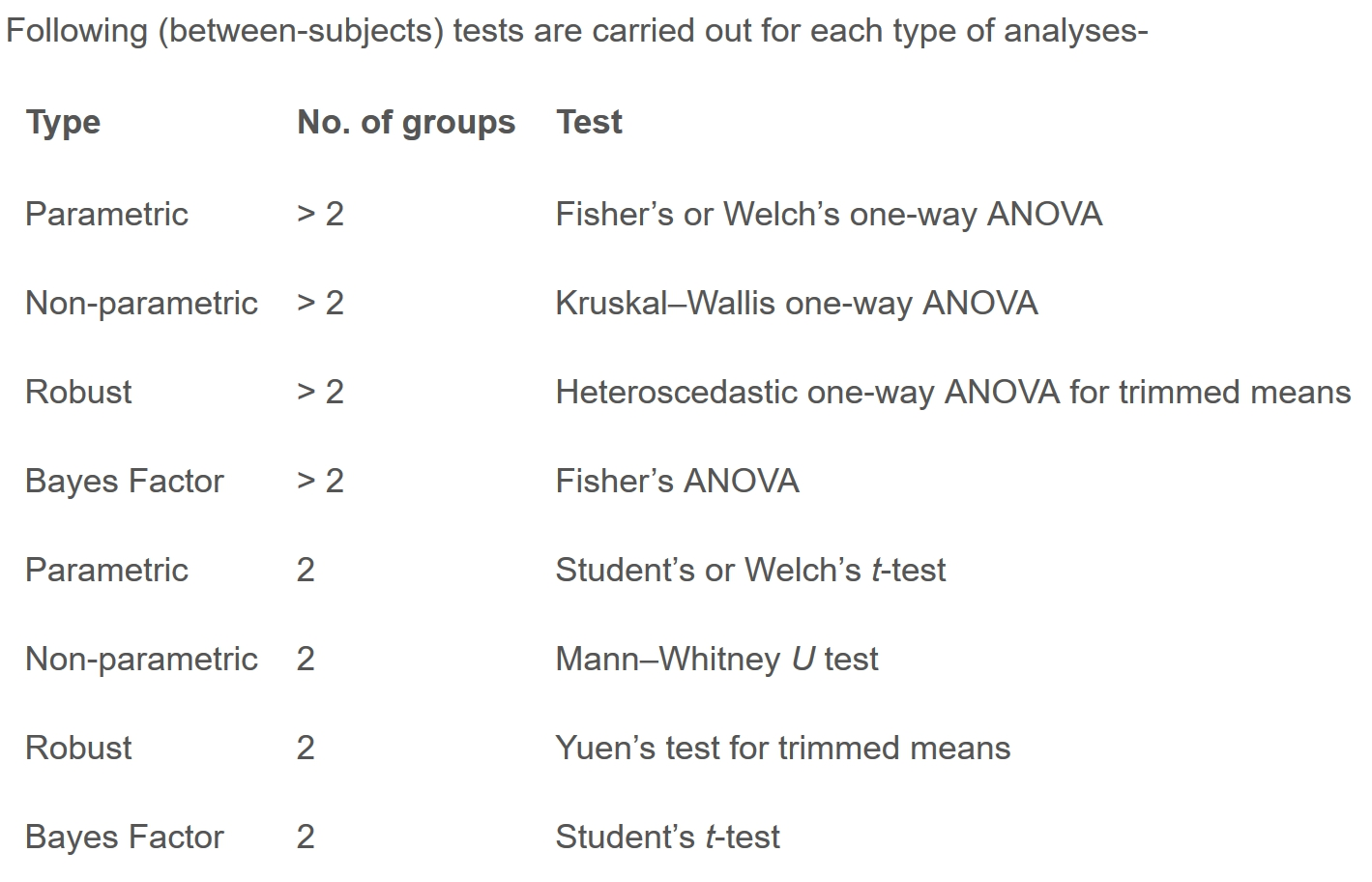

3.5.1 Summary of tests

3.6 Significant Test of Correlation: ggscatterstats()

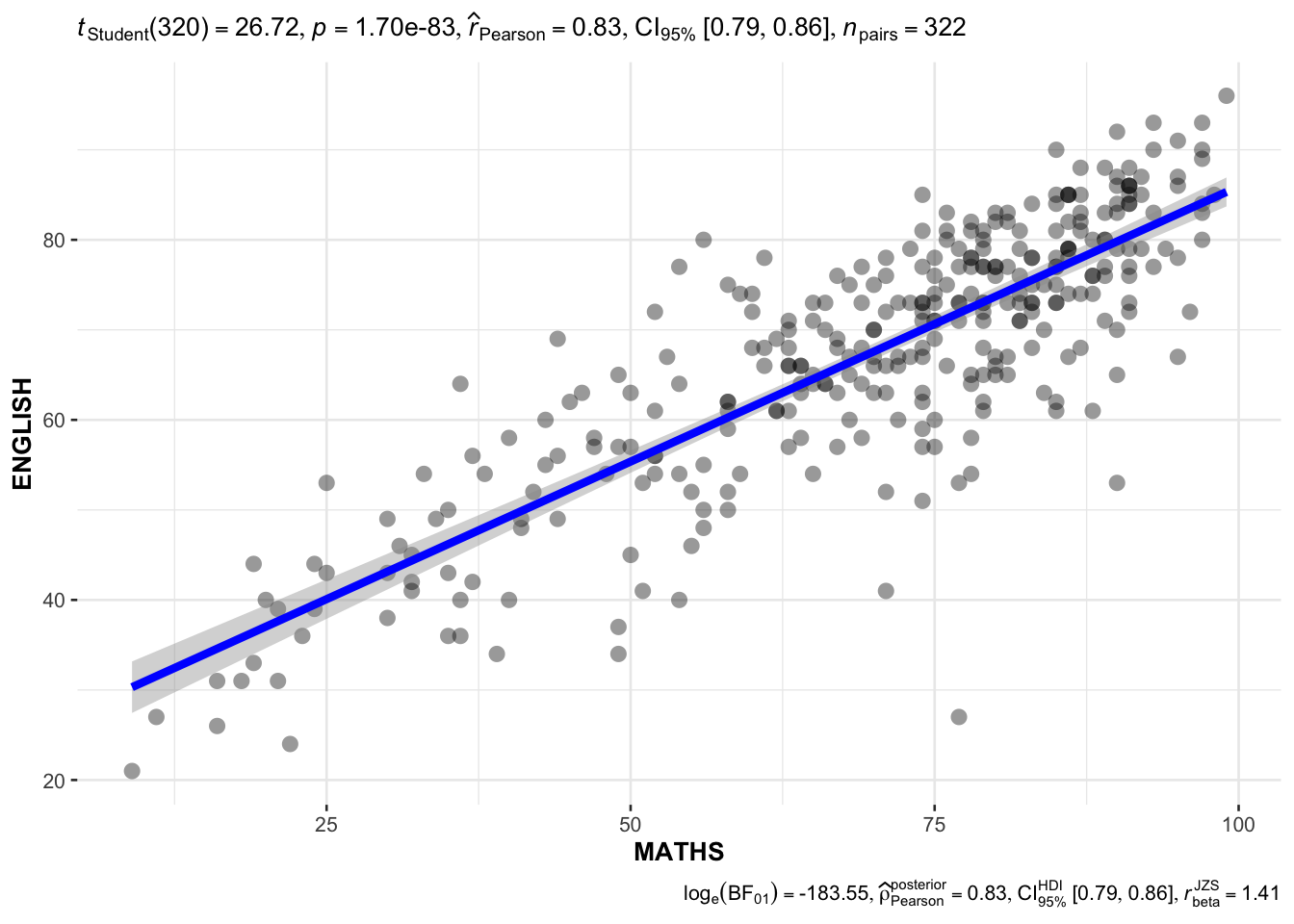

In the code chunk below, ggscatterstats() is used to build a visual for Significant Test of Correlation between Maths scores and English scores.

ggscatterstats(
  data = exam_data,
  x = MATHS,
  y = ENGLISH,
  marginal = FALSE,
  )

3.7 Significant Test of Association (Depedence) : ggbarstats() methods

In the code chunk below, the Maths scores is binned into a 4-class variable by using cut().

exam_binned <- exam_data %>%
  mutate(MATHS_bins =
           cut(MATHS,
               breaks = c(0,60,75,85,100))
)

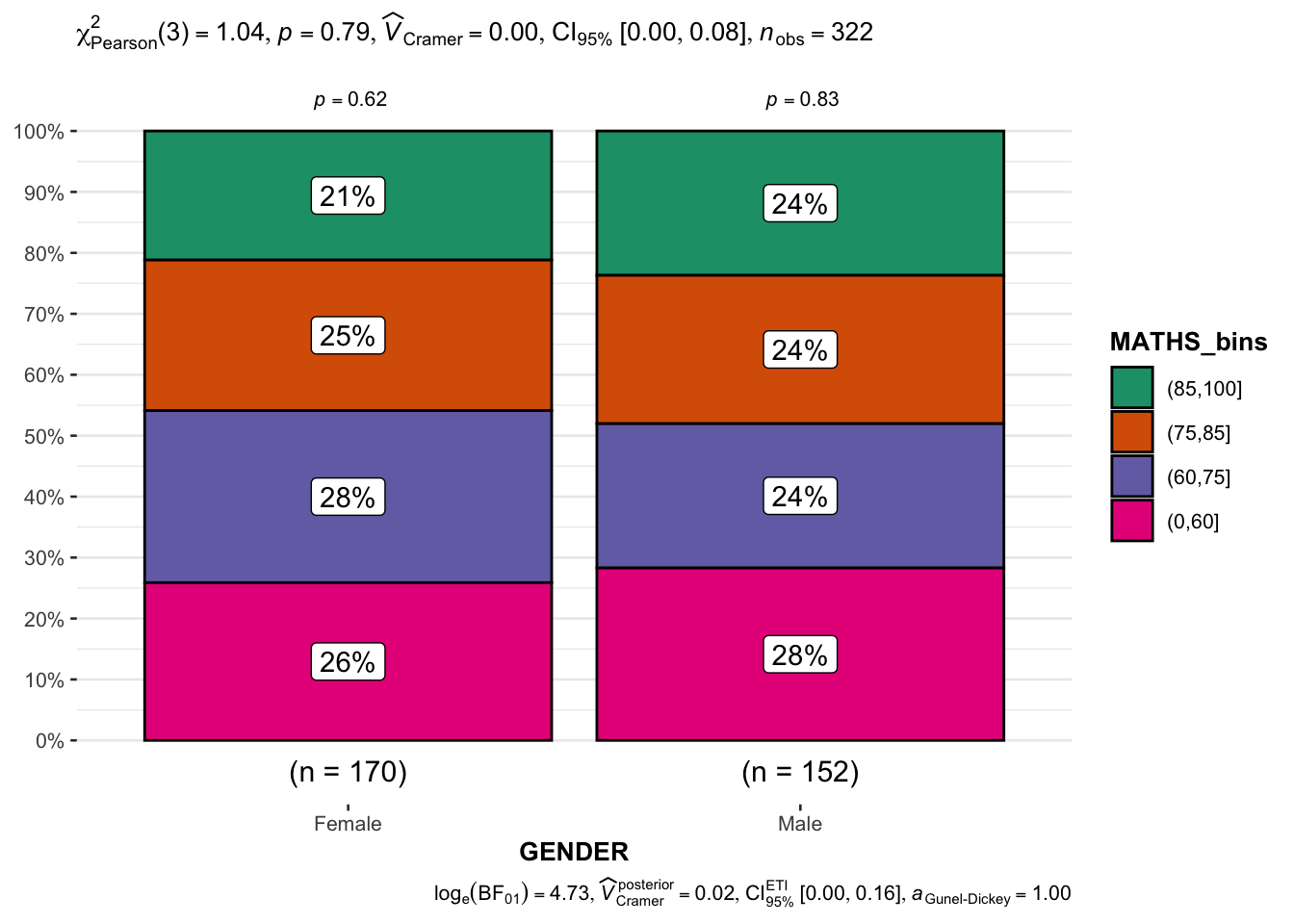

In this code chunk below ggbarstats() is used to build a visual for Significant Test of Association.

ggbarstats(exam_binned,
           x = MATHS_bins,
           y = GENDER)

4 Setting up for Visualizations

From this section, we will learn how to visualise model diagnostic and model parameters by using parameters package.

  • Toyota Corolla case study will be used. The purpose of study is to build a model to discover factors affecting prices of used-cars by taking into consideration a set of explanatory variables.

4.1 Loading the required packages

We will load additional packages:

pacman::p_load(readxl, performance, parameters, see)

4.2 Importing Excel file: readxl methods

In the code chunk below, read_xls() of readxl package is used to import the data worksheet of ToyotaCorolla.xls workbook into R.

car_resale <- read_xls("data/ToyotaCorolla.xls",
                       "data")
glimpse(car_resale)
Rows: 1,436
Columns: 38
$ Id               <dbl> 81, 1, 2, 3, 4, 5, 6, 7, 8, 44, 45, 46, 47, 49, 51, 6…
$ Model            <chr> "TOYOTA Corolla 1.6 5drs 1 4/5-Doors", "TOYOTA Coroll…
$ Price            <dbl> 18950, 13500, 13750, 13950, 14950, 13750, 12950, 1690…
$ Age_08_04        <dbl> 25, 23, 23, 24, 26, 30, 32, 27, 30, 27, 22, 23, 27, 2…
$ Mfg_Month        <dbl> 8, 10, 10, 9, 7, 3, 1, 6, 3, 6, 11, 10, 6, 11, 11, 11…
$ Mfg_Year         <dbl> 2002, 2002, 2002, 2002, 2002, 2002, 2002, 2002, 2002,…
$ KM               <dbl> 20019, 46986, 72937, 41711, 48000, 38500, 61000, 9461…
$ Quarterly_Tax    <dbl> 100, 210, 210, 210, 210, 210, 210, 210, 210, 234, 234…
$ Weight           <dbl> 1180, 1165, 1165, 1165, 1165, 1170, 1170, 1245, 1245,…
$ Guarantee_Period <dbl> 3, 3, 3, 3, 3, 3, 3, 3, 3, 3, 3, 3, 3, 3, 3, 3, 3, 3,…
$ HP_Bin           <chr> "100-120", "< 100", "< 100", "< 100", "< 100", "< 100…
$ CC_bin           <chr> "1600", ">1600", ">1600", ">1600", ">1600", ">1600", …
$ Doors            <dbl> 5, 3, 3, 3, 3, 3, 3, 3, 3, 5, 5, 5, 5, 5, 5, 5, 3, 3,…
$ Gears            <dbl> 5, 5, 5, 5, 5, 5, 5, 5, 5, 5, 5, 5, 5, 5, 5, 5, 5, 5,…
$ Cylinders        <dbl> 4, 4, 4, 4, 4, 4, 4, 4, 4, 4, 4, 4, 4, 4, 4, 4, 4, 4,…
$ Fuel_Type        <chr> "Petrol", "Diesel", "Diesel", "Diesel", "Diesel", "Di…
$ Color            <chr> "Blue", "Blue", "Silver", "Blue", "Black", "Black", "…
$ Met_Color        <dbl> 1, 1, 1, 1, 0, 0, 0, 1, 1, 0, 0, 0, 1, 1, 1, 1, 1, 1,…
$ Automatic        <dbl> 1, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0,…
$ Mfr_Guarantee    <dbl> 0, 0, 0, 1, 1, 1, 0, 0, 1, 1, 1, 0, 0, 1, 1, 1, 0, 1,…
$ BOVAG_Guarantee  <dbl> 0, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1,…
$ ABS              <dbl> 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1,…
$ Airbag_1         <dbl> 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1,…
$ Airbag_2         <dbl> 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1,…
$ Airco            <dbl> 1, 0, 1, 0, 0, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1,…
$ Automatic_airco  <dbl> 1, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 1, 0, 0, 0, 1, 0, 1,…
$ Boardcomputer    <dbl> 0, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1,…
$ CD_Player        <dbl> 1, 0, 1, 0, 0, 0, 0, 0, 1, 0, 0, 0, 1, 0, 1, 1, 1, 1,…
$ Central_Lock     <dbl> 1, 1, 1, 0, 0, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1,…
$ Powered_Windows  <dbl> 1, 1, 0, 0, 0, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1,…
$ Power_Steering   <dbl> 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1,…
$ Radio            <dbl> 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0,…
$ Mistlamps        <dbl> 0, 0, 0, 0, 0, 1, 1, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0,…
$ Sport_Model      <dbl> 0, 0, 0, 0, 0, 0, 0, 1, 0, 1, 1, 0, 1, 1, 1, 1, 1, 1,…
$ Backseat_Divider <dbl> 0, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1,…
$ Metallic_Rim     <dbl> 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0,…
$ Radio_cassette   <dbl> 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0,…
$ Tow_Bar          <dbl> 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0,…

5 Model Visualization

5.1 Multiple Regression Model using lm()

The code chunk below is used to calibrate a multiple linear regression model by using lm() of Base Stats of R.

model <- lm(Price ~ Age_08_04 + Mfg_Year + KM +
              Weight + Guarantee_Period, data = car_resale)
model

Call:
lm(formula = Price ~ Age_08_04 + Mfg_Year + KM + Weight + Guarantee_Period,
    data = car_resale)

Coefficients:
     (Intercept)         Age_08_04          Mfg_Year                KM
      -2.637e+06        -1.409e+01         1.315e+03        -2.323e-02
          Weight  Guarantee_Period
       1.903e+01         2.770e+01

5.2 Model Diagnostic: checking for multicolinearity

In the code chunk, check_collinearity() of performance package.

check_collinearity(model)
# Check for Multicollinearity

Low Correlation

             Term  VIF     VIF 95% CI Increased SE Tolerance Tolerance 95% CI
               KM 1.46 [ 1.37,  1.57]         1.21      0.68     [0.64, 0.73]
           Weight 1.41 [ 1.32,  1.51]         1.19      0.71     [0.66, 0.76]
 Guarantee_Period 1.04 [ 1.01,  1.17]         1.02      0.97     [0.86, 0.99]

High Correlation

      Term   VIF     VIF 95% CI Increased SE Tolerance Tolerance 95% CI
 Age_08_04 31.07 [28.08, 34.38]         5.57      0.03     [0.03, 0.04]
  Mfg_Year 31.16 [28.16, 34.48]         5.58      0.03     [0.03, 0.04]

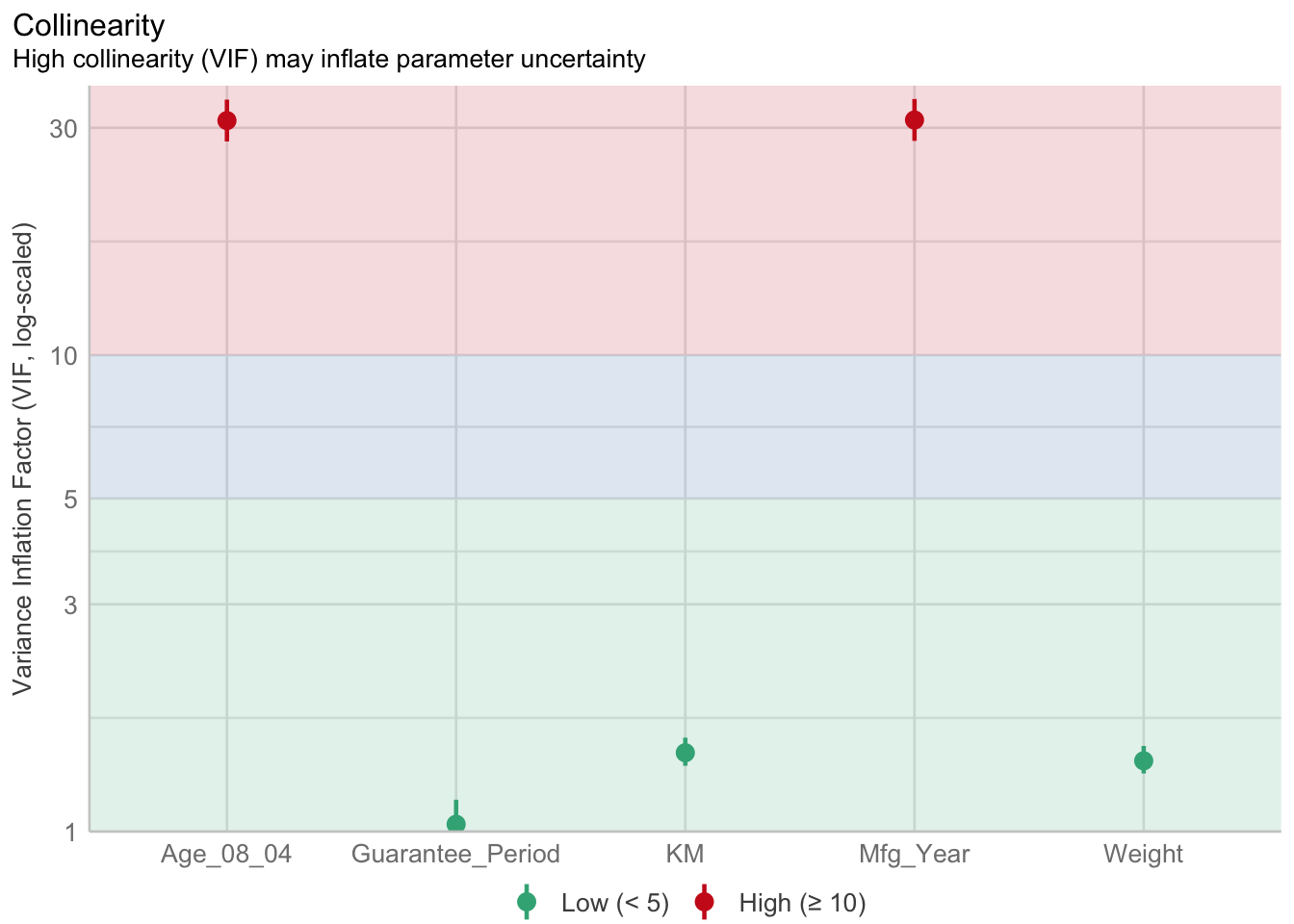

We can also plot the function result

check_c <- check_collinearity(model)
plot(check_c)

5.3 Model Diagnostic: checking normality assumption

In the code chunk, check_normality() of performance package.

model1 <- lm(Price ~ Age_08_04 + KM +
              Weight + Guarantee_Period, data = car_resale)

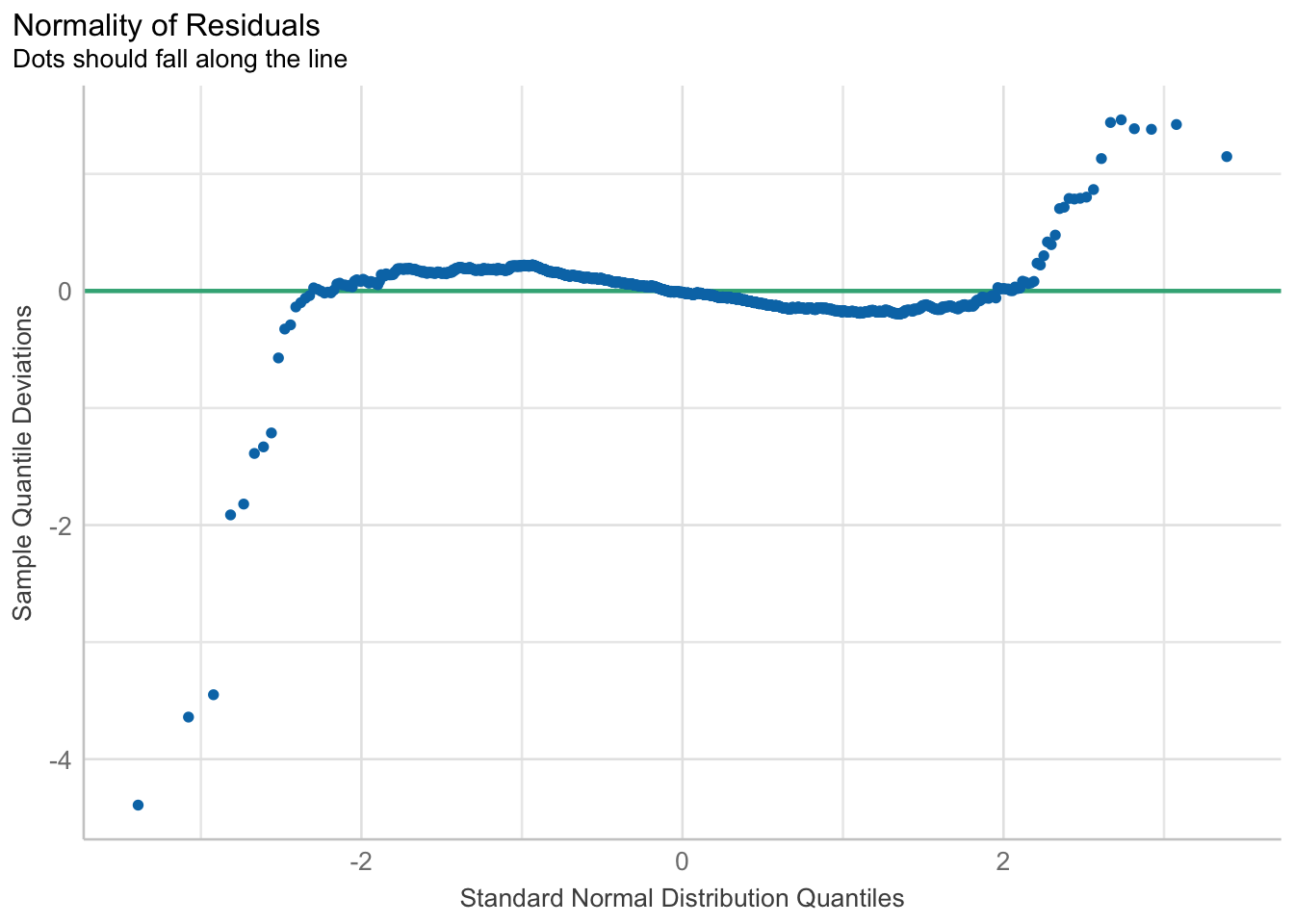

check_n <- check_normality(model1)
plot(check_n)

5.4 Model Diagnostic: Check model for homogeneity of variances

In the code chunk, check_heteroscedasticity() of performance package.

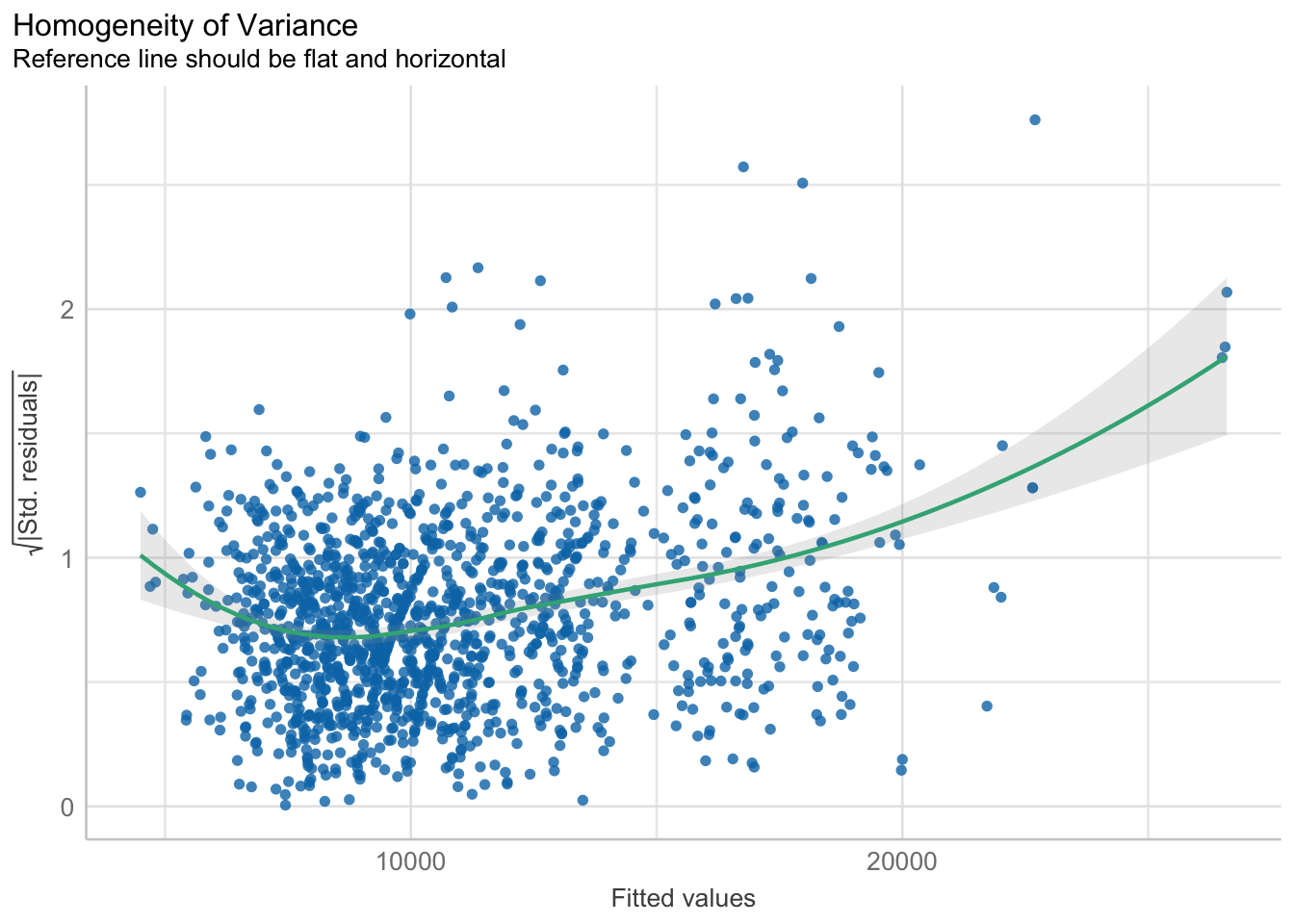

check_h <- check_heteroscedasticity(model1)
plot(check_h)

5.5 Model Diagnostic: Complete check

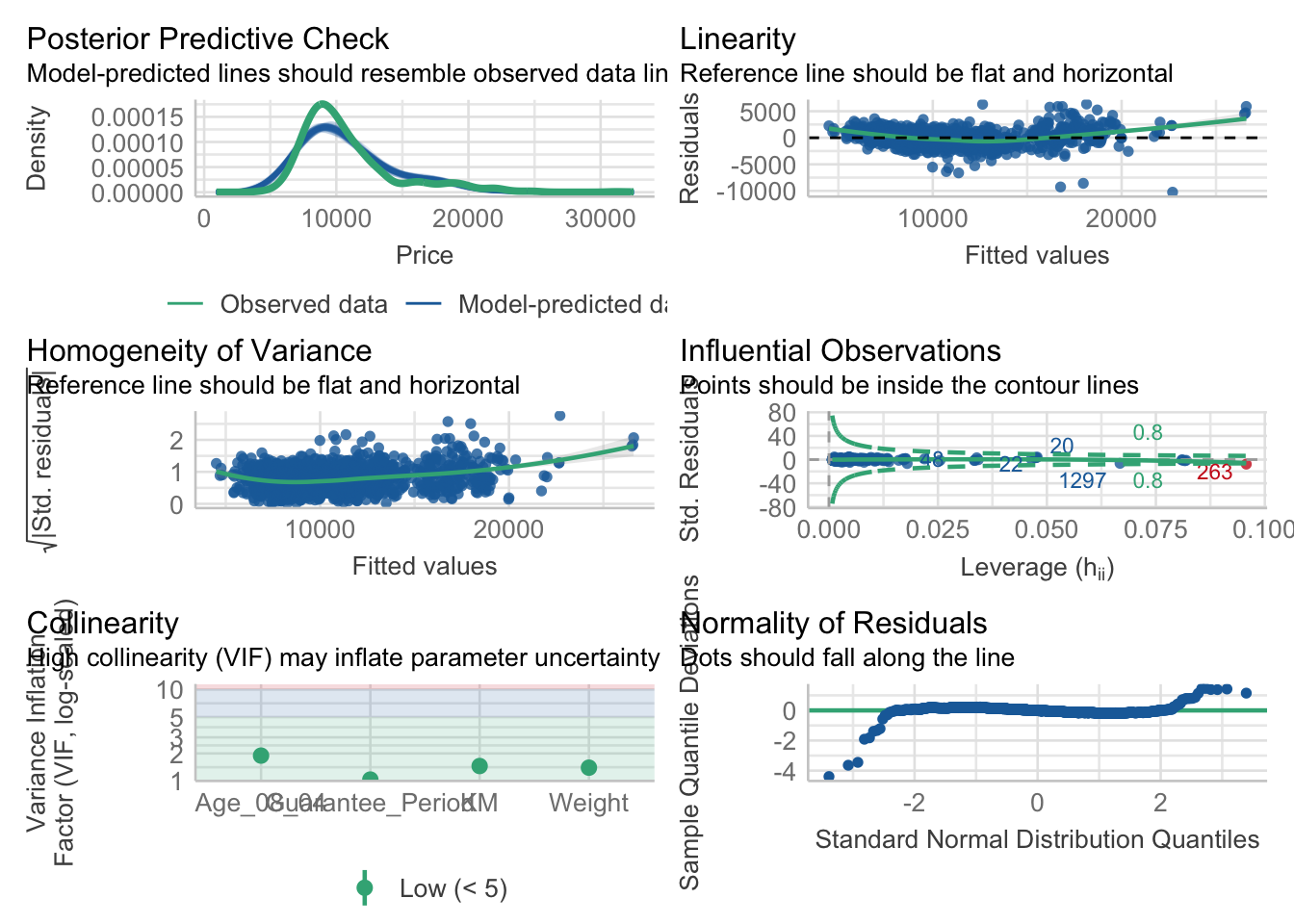

We can also perform the complete by using check_model().

check_model(model1)

5.6 Visualising Regression Parameters: see methods

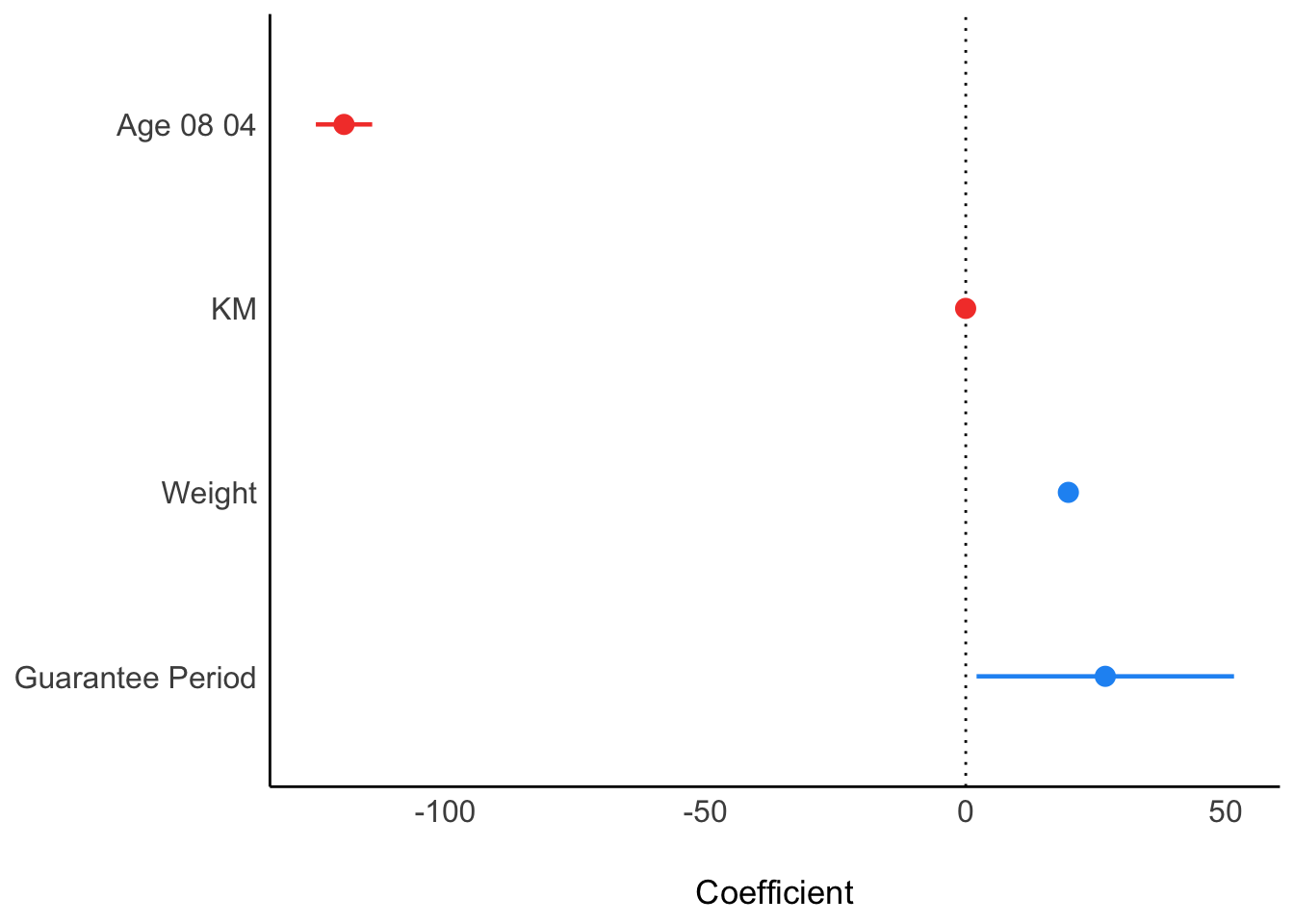

plot(parameters(model1))

5.7 Visualising Regression Parameters: ggcoefstats() methods

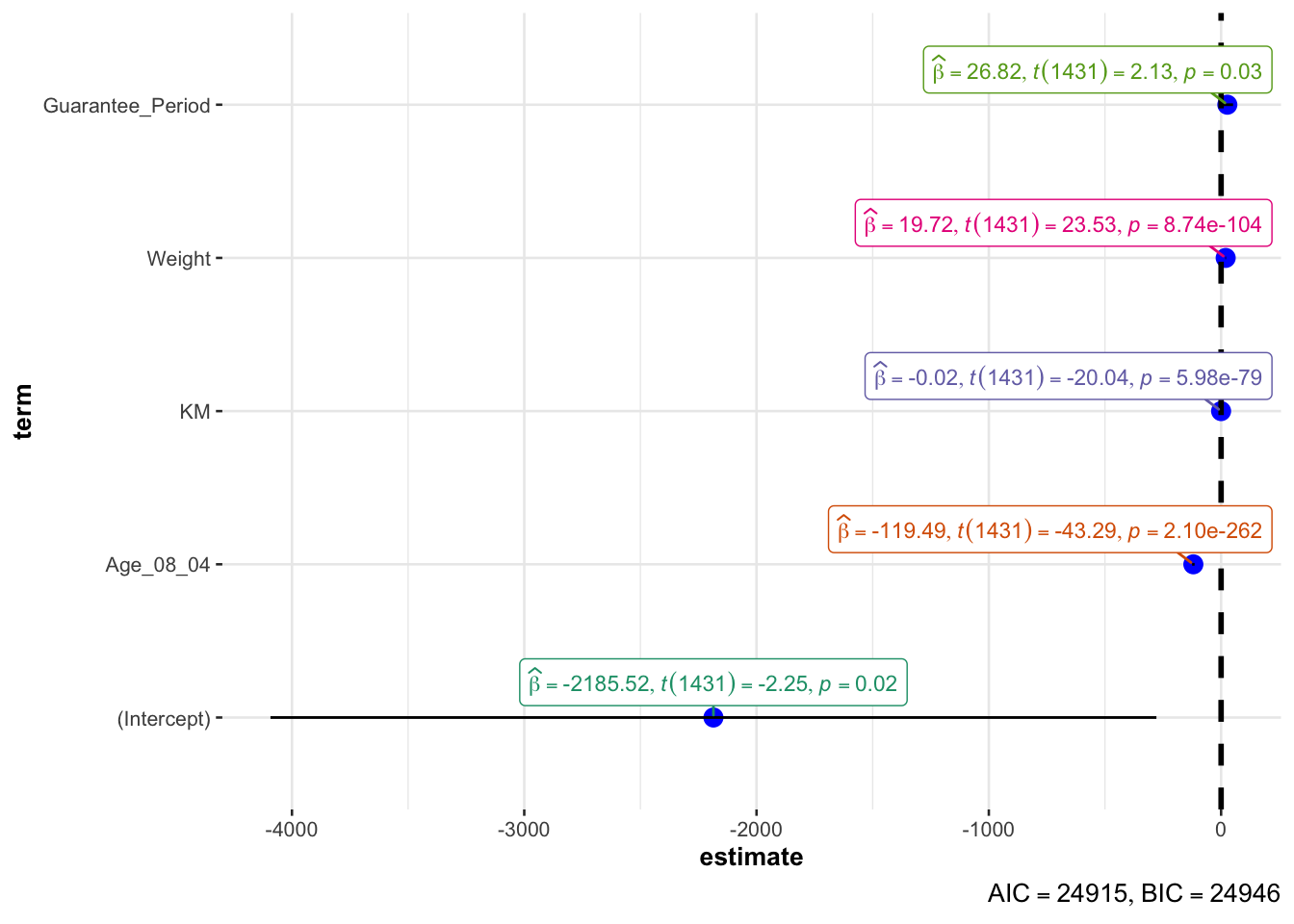

In the code below, ggcoefstats() of ggstatsplot package to visualise the parameters of a regression model.

ggcoefstats(model1,
            output = "plot")

6 Reflections

It’s great that there are functions to visualizing statistics as from the past exercises, it was such a chore to add even a simple reference line based on median/average, i.e., figure out how to do the stat, render it, annotate. What more for more advanced stats?

I ran into issues installing see package in my first attempt (late in the night) to complete this exercise so I investigated the issue the next day when my mind is clearer. It turns out new version of R and RStudio were released yesterday which made my current installs incompatible with the new package versions. I shared my findings on https://piazza.com/class/luiwwx5xp1e4ay/post/48. I realized that some R packages may be backward incompatible.
